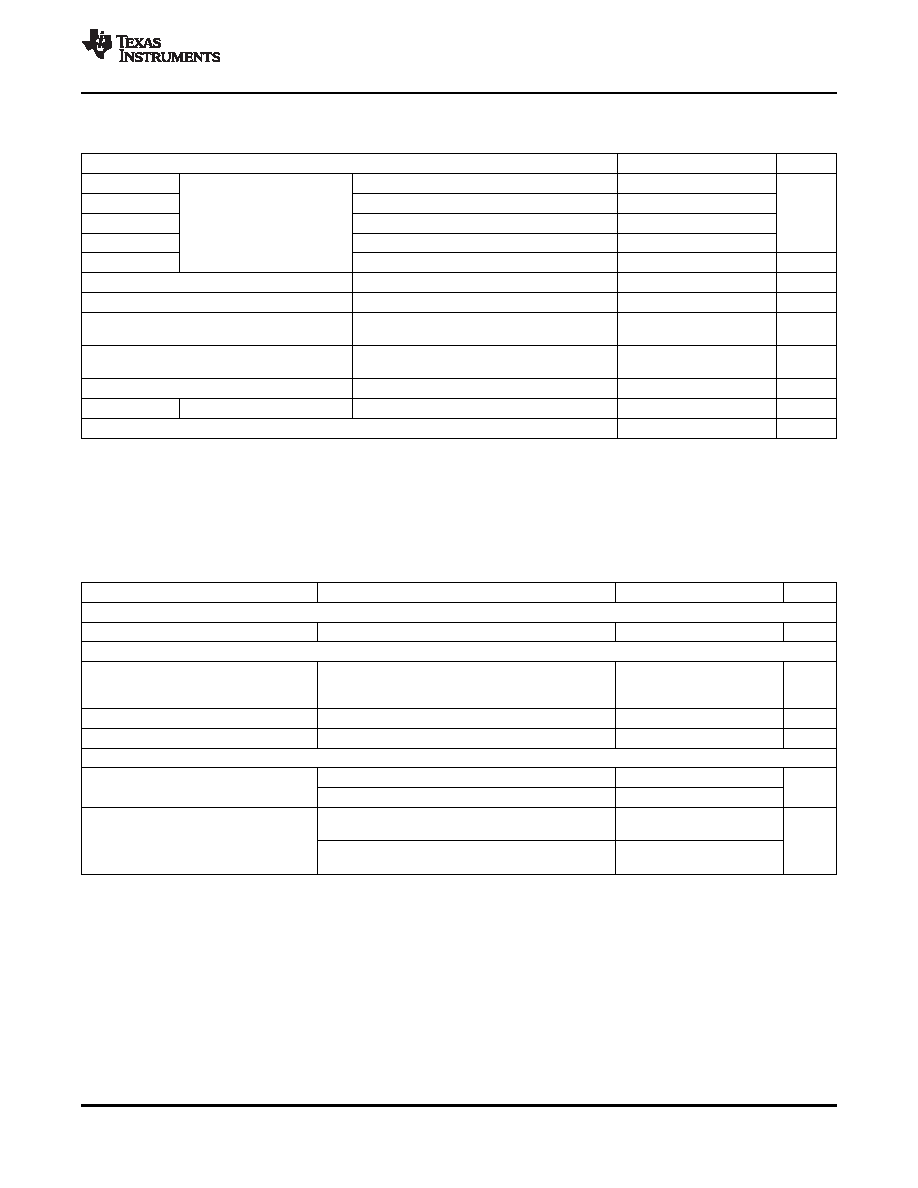

www.ti.com
SLAS659 – NOVEMBER 2009
3.2
Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
NOM
MAX
UNIT
AVDD(1)
Referenced to AVSS(2)
2.7
3.3
3.6
DVDD
Referenced to DVSS(2)
1.65
1.8
1.95
V
HPVDD
Power-supply voltage range
Referenced to HPVSS(2)
2.7
3.3
3.6
SPKVDD(1)
Referenced to SPKVSS(2)
2.7
5.5
IOVDD
Referenced to IOVSS(2)
1.1
3.3
3.6
Speaker impedance
Load applied across class-D output pins (BTL)
4
Headphone impedance
AC-coupled to RL
16
Analog audio full-scale input
VI
AVDD = 3.3 V, single-ended
0.707
VRMS
voltage
Mono line output load
AC-coupled to RL
10
k
impedance
MCLK(3)
Master clock frequency
IOVDD = 3.3 V
50
MHz
SCL
SCL clock frequency
400
kHz
TA
Operating free-air temperature
–40
85
°C
(1)
To minimize battery-current leakage, the SPKVDD and SPKVDD voltage levels should not be below the AVDD voltage level.
(2)
All grounds on board are tied together, so they should not differ in voltage by more than 0.2 V maximum for any combination of ground
signals. By use of a wide trace or ground plane, ensure a low-impedance connection between HPVSS and DVSS.
(3)
The maximum input frequency should be 50 MHz for any digital pin used as a general-purpose clock.
3.3
Electrical Characteristics
At 25°C, AVDD = HPVDD = IOVDD = 3.3 V, SPKVDD = 3.6 V, DVDD = 1.8 V, fS (audio) = 48 kHz,
CODEC_CLKIN = 256 × fS, PLL = Off, VOL/MICDET pin disabled (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
INTERNAL OSCILLATOR—RC_CLK
Oscillator frequency
8.2
MHz
VOLUME CONTROL PIN (ADC); VOL/MICDET pin enabled
VOL/MICDET pin configured as volume control (page
0.5 ×
Input voltage range
0 / register 116, bit D7 = 1 and page 0 / register 67,
0
V
AVDD
bit D7 = 0)
Input capacitance
2
pF
Volume control steps
128
Steps
MICROPHONE BIAS
Page 1 / register 46, bits D1–D0 = 10
2.25
2.5
2.75
Voltage output
V
Page 1 / register 46, bits D1–D0 = 01
2
At 4-mA load current, page 1 / register 46, bits D1–D0
5
= 10 (MICBIAS = 2.5 V)
Voltage regulation
mV
At 4-mA load current, page 1 / register 46, bits D1–D0
7
= 01 (MICBIAS = 2 V)
Copyright 2009, Texas Instruments Incorporated
ELECTRICAL SPECIFICATIONS
5
Product Folder Link(s): TLV320DAC3120
