CSPI
CSPI Write Operation
1.5CCLK
CCLK
CDATA
CSTB
D7
D6
D5
D4
D3
D2
D1
D0
A7
A6
A5
A4
A3
A2
A1
A0
DataLatch
SLVS708B – NOVEMBER 2006 – REVISED APRIL 2007
default value when the CRESET pin becomes Low. It gives priority to TSP for the addresses of Table 24,
although CSPI and TSP are also possible for writing two interfaces simultaneously. It is not possible to write
from CSPI while TSP is writing to CSPI. This operation is detected by the TSPEN signal. When TSPEN=Low,
Table 24 priority operation goes active. The other addresses can be accessed from CSPI during TSPEN=Low.
However, note that writing from CSPI becomes effective when there is writing from CSPI to the same address,
after writing TSP ends. Internal logic is able to operate between 2.7V and 3.1V. But the DC/DC converter,
PAVREF and V11_V28TX should be OFF. Also, V12_V28RX, V13_V28A, V15_V18A, VGGE1_V28,
VGGE2_V28 and VGGE3_V28 should be OFF, or Low-power Mode.
Table 24. TSP Priority Address of Write Operation
CSPI
TSP
ADDRESS
REG. NAME
ADDRESS
REG. NAME
F0h
AFCMSBW
0h
AFCDATA
F1h
AFCLSBW
ECh
2GLDOW
1h
2GLDOCTL
F2h
AFCDACCTLW
2h
AFCDACCTL

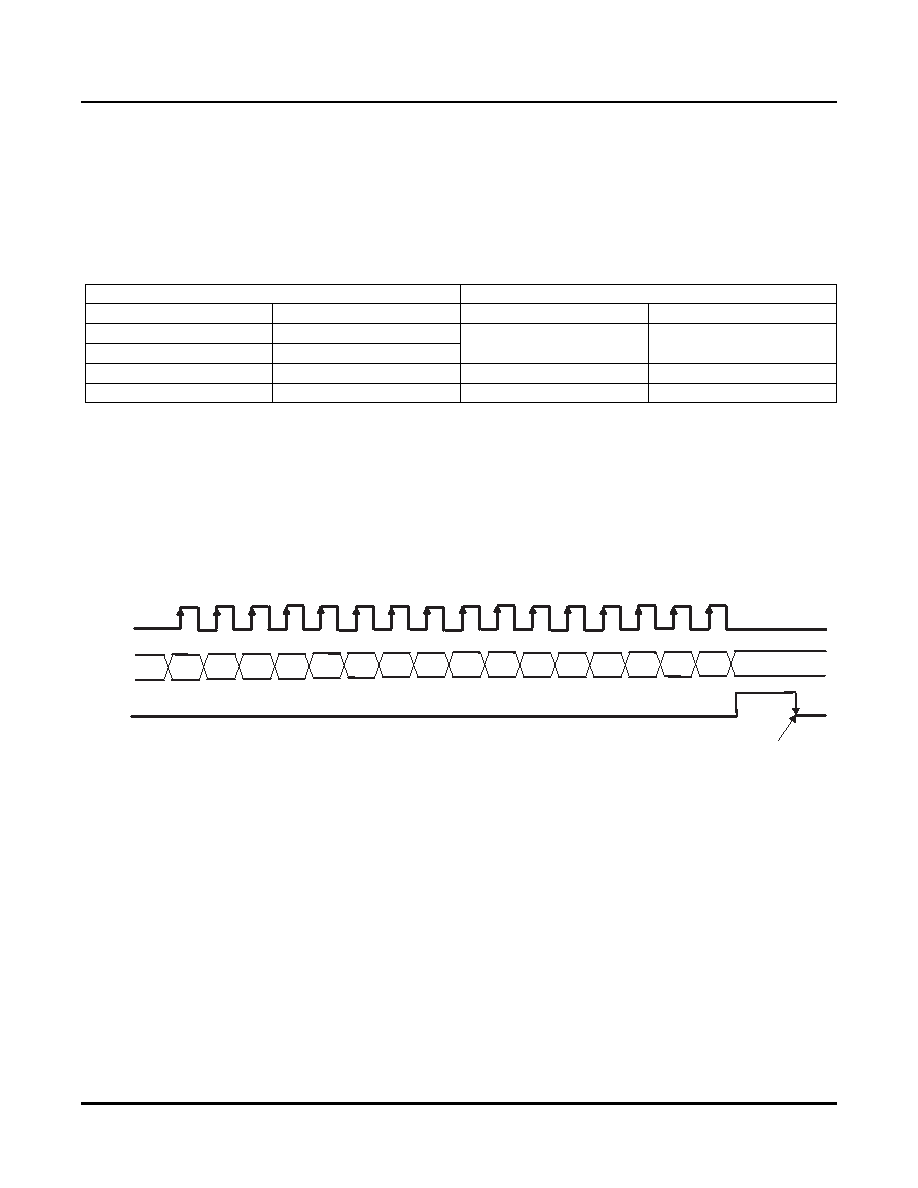

CSPI is an interface that consists of three lines (CDATA pin, CCLK pin, and CSTB pin). It changes into the
output mode only when reading data, although CDATA is usually an input mode. Data length becomes 16-BIT
(8-BIT data, 8-BIT address). The WRITE format is shown in Figure 86 and the READ format is shown in
Figure 87. The timing of READ/WRITE for CSPI operation is shown in Figure 88.
The 8-BIT advance data becomes the WRITE operation, and the following 8-BIT group becomes an address by
data. WRITE data is taken by the rising edge of CCLK, and reflected by the falling edge of CSTB.
Figure 86. CSPI Write Format
Notification is given when the data of AFCDAC is re-written by using CSPI. AFCDAC has a 12-bit data length.
Since the data length of CSPI is 8-bit, it can not re-write the 12-bIt data by the one-time-access. Therefore, the
data of AFCDAC is written by two-times-access from CSPI. F0h: r[AFCMSBW] is written first, and the next is
F1h: r[AFCLSBW]. This process is described as:
1. Write data in F0h : r [AFCMSBW]. Write '0' in the first 4 bits. This data is insignificant.
2. Write data in F1h : r [AFCLSBW].
Note 1. If step 2 is done before step 1, the correct data will not be reflected.
Note 2. If step 2 is done, but step 1 and step 2 are done sequentially, the correct data will be properly reflected.
68
