TFP420
PanelBus
DIGITAL TRANSMITTER
SLDS123A – MARCH 2000 – REVISED JUNE 2000
2
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
description (continued)
The scalable (1.1 V to 1.8 V) low-swing digital pixel interface provides a low-EMI and high-speed bus that
connects seamlessly with Intel’s digital video out (DVO) port, perfectly linking the graphics controller and the
DVI transmitter. The DVI interface supports display resolutions up to UXGA at 165 MHz in 24-bit true color pixel
format.
The TFP420 combines PanelBus
circuit innovation, TI’s advanced 0.18 m EPIC-5 CMOS process
technology, and PowerPAD
ultralow ground inductance package technology to provide a reliable, low-power,
and low-noise digital interface solution.

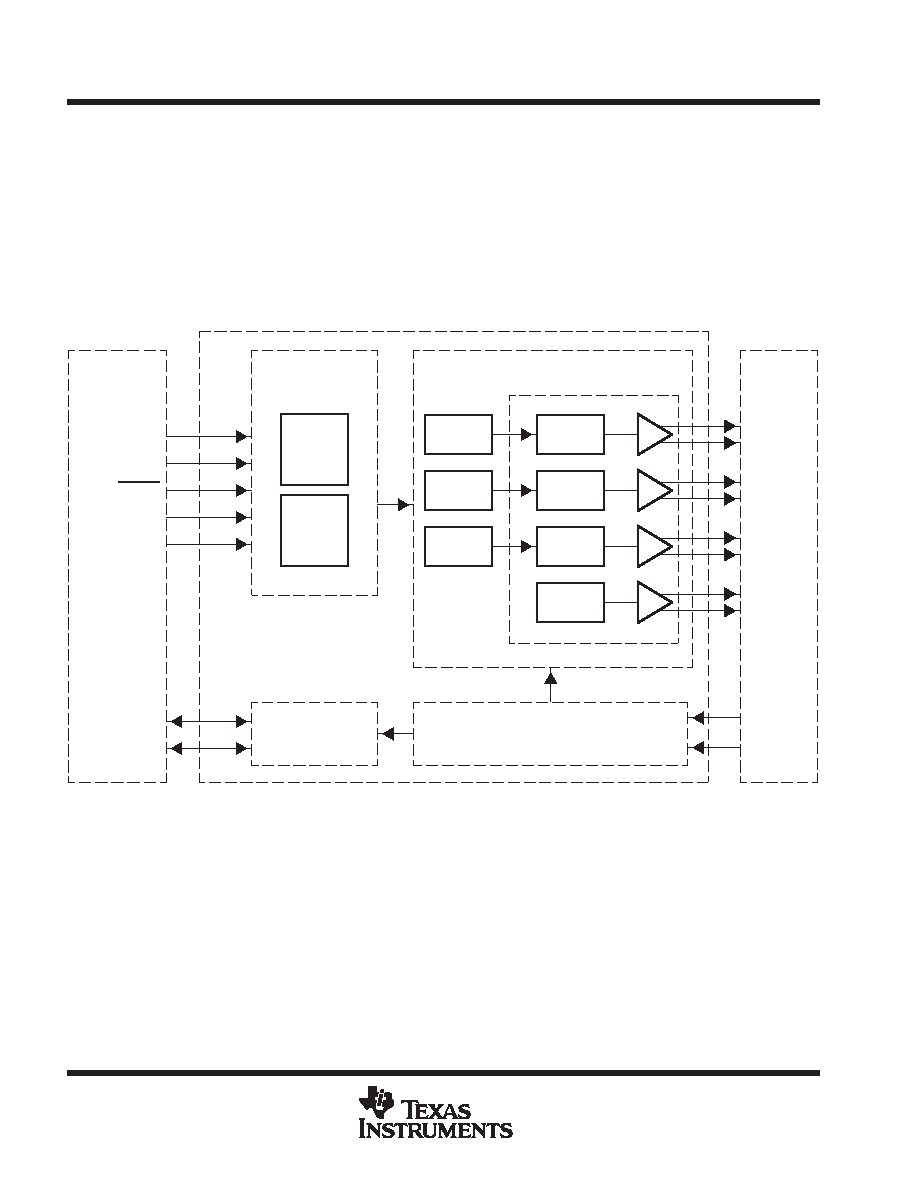

functional block diagram
Control
TXC
±
Encoder
Serializer
Encoder
Serializer
Encoder
Serializer
DVI Encoder
TX0
±
TX1
±
TX2
±
DVI I/F
PLL
XTAL2
XTAL1
BLANK
Video Port
Format
Data
De-Skew
CLKOUT[1:0]
LTVDATA[11:0]
VSYN
HSYN
PLL
I2C Interface
SCL
SDA
DVO I/F
