TS8388BG
44/46
9. TSEV8388BG : CHIP EVALUATION BOARD (see separate TSEV8388BG specification)
TSEV8388 GENERAL DESCRIPTION
The TSEV8388BG Evaluation Board (CEB) is a prototype board which has been designed in order to facilitate the evalu-
ation and the characterization of the TS8388BG device up to its 1.8 GHz full power bandwidth at up to 1 GSPS in the
military temperature range.
The high speed of the TS8388BG requires careful attention to circuit design and layout to achieve optimal performance.
This four metal layer board with internal ground plane has the adequate functions in order to allow a quick and simple
evaluation of the TS8388BG ADC performances over the temperature range.
The TSEV8388BG Evaluation Board is very straightforward as it only implements the TS8388BG ADC, SMA connec-
tors for input / output accesses and a 2.54 mm pitch connector compatible with HP16500C high frequency probes.
The board also implements a de-embedding fixture in order to facilitate the evaluation of the high frequency insertion
loss of the input microstrip lines, and a die junction temperature measurement setting.
The board is made of a sandwich of two dielectric layers, featuring low insertion loss and enhanced thermal characteris-
tics for operation in the high frequency domain and extended temperature range.
The board dimensions are 130 mm x 130 mm.
The board set comes fully assembled and tested, with the TS8388BG in CBGA72 package installed together with an
adequate heat sink.

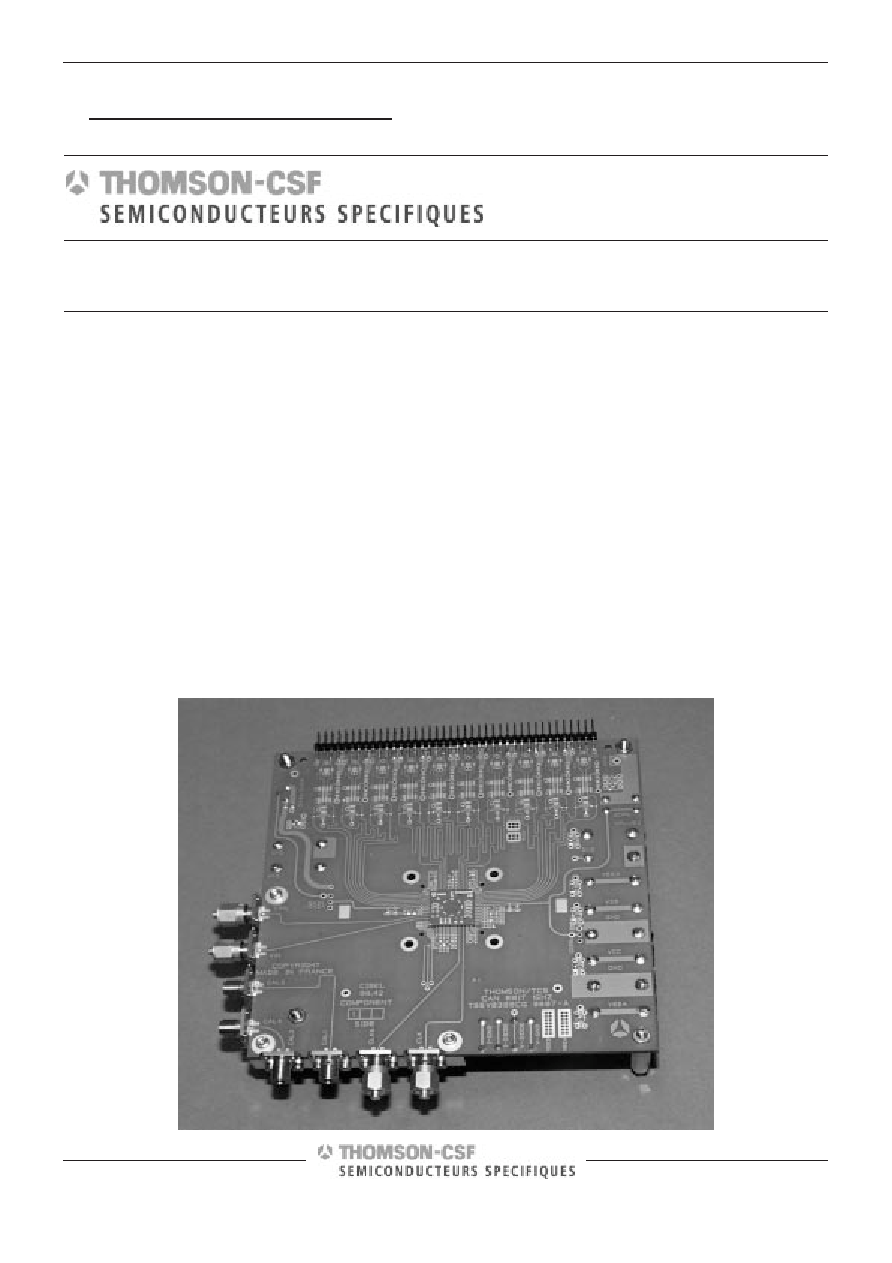

EVALUATION BOARD PHOTOGRAPH
TSEV8388BG
8 BIT 1 GSPS ADC CHIP EVALUATION BOARD
