7/16/99 REV.PRA
1
a
CMOS 300 MHz Quadrature
Complete-DDS
PREL IMINARY TECHNICAL DATA
AD9854
FEATURES
300 MHz Internal Clock Rate
Dual12-bit Quadrature Output DACs
Ultra High-speed, 3ps RMS Jitter Comparator
Excellent Dynamic Performance:
80 dB SFDR @ 100 MHz (
±
1 MHz) Aout
4
×
- 20
×
Programmable Reference Clock Multiplier
Dual 48-bit Programmable Frequency Registers
Dual 14-bit Programmable Phase Offset Registers
12-bit Amplitude Modulation and Programmable Shaped
On-Off Keying Function
Single pin FSK and PSK data interface
Linear or Non-Linear FMChirp Functions with Single
Pin Frequency “Hold” Function
Frequency-Ramped FSK
Automatic Bi-directional Frequency Sweep
SIN (X)/X Correction
Simplified Control Interface:
10 MHz Serial, 2 or 3-wire SPI compatible or
100 MHz Parallel 8-Bit Byte Programming
+3.3 V Single Supply
Multiple Power-Down Functions
Single-Ended or Differential Input Reference Clock
Small 80 -pin LQFP Packaging
APPLICATIONS
Agile, Quadrature L.O. Frequency Synthesis
Programmable Clock Generator
FMChirp Source for Radar and Scanning Systems
Test and Measurement Equipment
Commercial & Amateur RF exciter

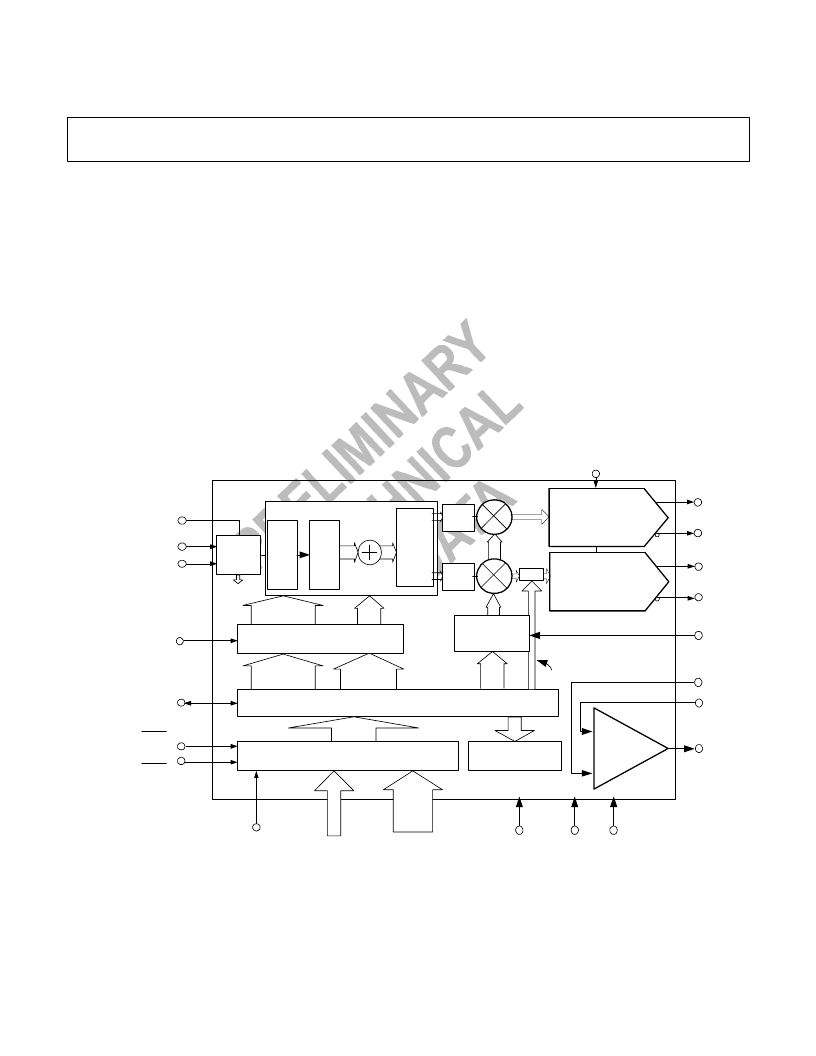

AD9854 Block Diagram
Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog devices for its use, nor for any infringements of
patents or other rights of third parties which may result fromits use. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Bi-directional
I/O Update
Shaped on-off
Keying
8-bit Parallel
Load
FSK/BPSK/HOLD
Data In
Master
Reset
Reference
Clock In
48-bit Frequency
Tuning Word
Frequency Tuning Word/Phase Word
Multiplexer & Ramp Start Stop Logic
I/O PORT BUFFERS
6-bit Address
or Serial
Programming
lines
PROGRAMMING REGISTERS
Serial/Parallel
Select
14-bit Phase
Offset/
Modulation
+Vs
Gnd
Programmable Rate
and Update Clocks
Phase Offset/
Modulation
4X - 20X
Ref. Clock
Multiplier
Clock
300 MHz
DDS
Read
Write
S
C
P
A
F
A
Comparator
Analog In
Clock Out
+
-
DAC R
SET
Digital Multiplier's
12-bit
AM
MOD
Inverse
Sinc
Filter
Inverse
Sinc
Filter
MUX
Ramp-up/Down
Clock/Logic &
Multiplexer
Analog Out
Analog Out
12-Bit "I"
DAC
12-Bit "Q"or
Control DAC
AD9854
12-bit Control DAC Data
Diff/Single
Select
I
Q
