AD9854 PRELIMINARY TECHNICAL DATA
_____________________________________________________________________________________________________
7/16/99 REV.PRA
20
Parallel IO Operation
With the SPSELECT pin tied high, the parallel IO
mode is active. The IO port is compatible with industry
standard DSPs and micro-Controllers. Six address bits,
8 bi-directional data bits and separate write/read
control inputs make up the IO port pins (Figure
above).
Parallel IO operation allows write access to each byte
of any register in a single IO operation at 100Mhz
.
Read back capability for each register is included to
ease designing with the AD9854/52. Reads are not
guaranteed at 100Mhz as they are intended for
software debug only.
Parallel IO operation timing diagrams and are shown in
the figures below.
February 22, 1999

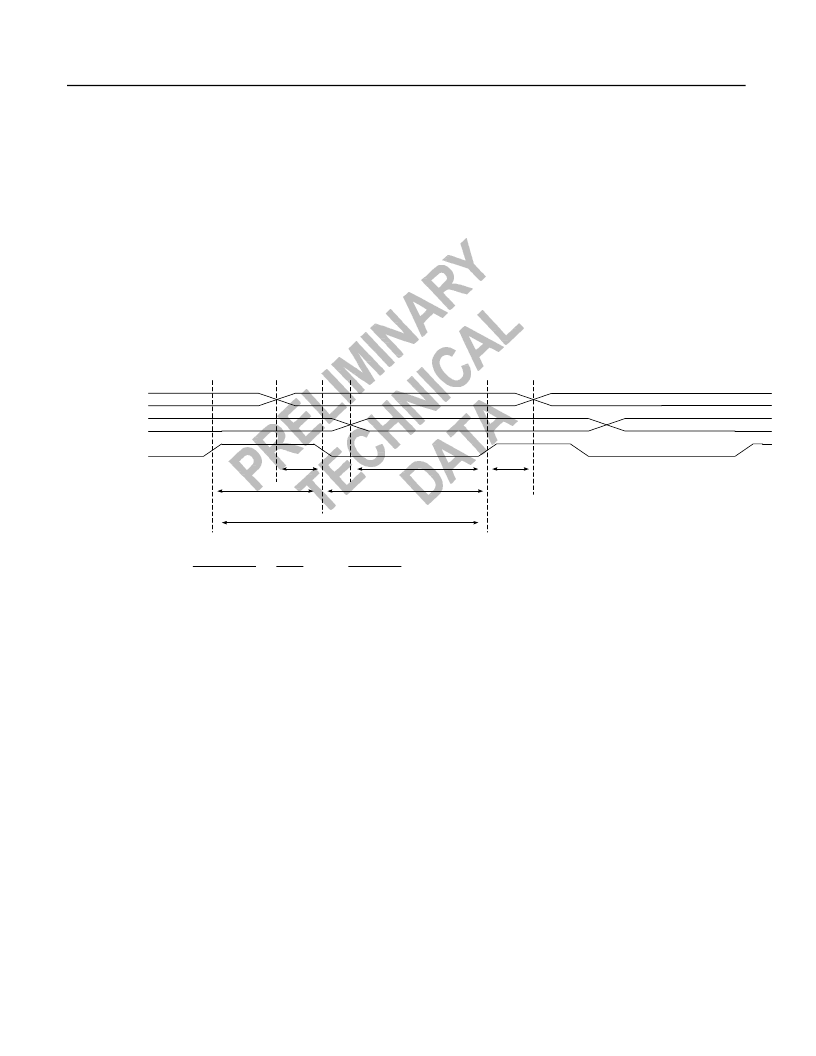

AD9854/52 Parallel Port Write Timing Diagram
D<7:0>
A<5:0>
A
1
A
2
A
3
D
1
D
2
D
3
____
WR
T
ASU
T
AHD
T
DHD
T
DSU
T
WRLOW
Specification Value Description
T
ASU
~3ns Address Setup Time To WR Singal Active
T
DSU
~3ns Data Setup Time To WR Signal Inactive
T
ADH
~3ns Address Hold Time To WR Signal Inactive
T
DHD
~3ns Data Hold Time To WR Signal Inactive
T
WRLOW
~5ns WR Signal Minimum Low Time
T
WRHIGH
T
ASU
+ T
AHD
WR Signal Minimum High Time
T
WR
T
WRLOW
+ T
WRHIGH
WR Signal Minimum Period
T
WR
T
WRHIGH
