AD9854 PRELIMINARY TECHNICAL DATA
_____________________________________________________________________________________________________
Programming the AD9854/52
7/16/99 REV.PRA
19
The AD9854/52 Register Layout, shown in Table 1,
contains the information that programs the chip for the
desired functionality. While many applications will
require very little programming to configure the
AD9854/52, some will make use of all 12 registers that
are accessible. The AD9854/52 supports an 8-bit
parallel IO operation or a SPI compatible serial IO
operation. All registers accessible can be written and
read back in either IO operating mode.
An external pin, SPSELECT, is used to configure the
IO mode. Systems that use the parallel IO mode must
tie the SPSELECT pin to VDD. Systems that operate
in the serial IO mode must tie the SPSELECT pin to
GND.
Regardless of mode, the IO port data is written to a
buffer memory that does NOT affect operation of the
part until the contents of the buffer memory is
transferred to the register bank. This transfer of
information occurs synchronous to the system clock
and occurs in one of two ways, 1) internally controlled
at a rate programmable by the user or, 2) externally
controlled by the user. IO operations can occur in the
absence of REFCLK but the data cannot be moved
from the buffer memory to the register bank without
REFCLK. See the Update Clock Operation section of
this document for details.
Buffer
Memory
Latches
buf_outRampRate<7:0>
buf_outRampIMult<15:0>
buf_CTL<31:0>
buf_RRC<19:0>
buf_delPh<47:0>
buf_udClk<31:0>
buf_ftw2<47:0>
buf_ftw1<47:0>
buf_phAdjust2<13:0>
buf_phAdjust1<13:0>
Addr<5:0>
D<7:0>
___
WR
___
RD
Update Clock Logic
UPDATE_CLK
sysclk
hold
T
IntUpdateActive
Register
Bank
outRampQMult<15:0>
outRampIMult<15:0>
CTL<31:0>
RRC<19:0>
delPh<47:0>
ftw2<47:0>
ftw1<47:0>
phAdjust2<13:0>
phAdjust1<13:0>
updateRegs

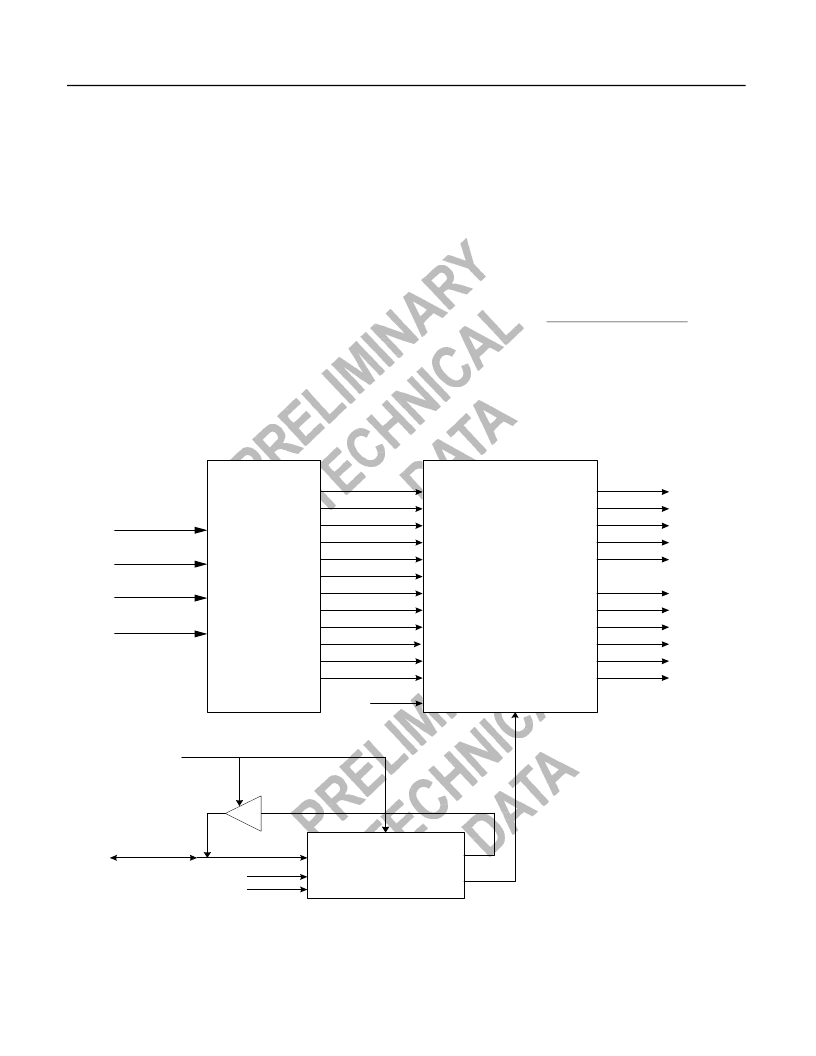

AD9854/52 IO Port Block Diagram
buf_outRampQMult<15:0>
buf_QDAC<11:0>
sysclk
QDAC<11:0>
outRampRate<7:0>
