CCD Signal Processor with
Precision Timing Generator
AD9929
FEATURES
36 MSPS correlated double sampler (CDS)
12-bit 36 MHz A/D converter
On-chip vertical driver for CCD image sensor
On-chip horizontal driver for CCD image sensor
6 dB to 40 dB variable gain amplifier (VGA)
Black level clamp with variable level control
Complete on-chip timing generator
Precision Timing core with 0.58 ns resolution
2-phase H-clock modes
4-phase vertical transfer clocks
Electronic and mechanical shutter modes
On-chip sync generator with external sync option
64-lead, plastic ball, 9 × 9 grid array Pb-free package
APPLICATION
Digital still cameras
Digital video camcorders
Rev. A
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
Tel: 781.329.4700Fax: 781.326.8703
www.analog.com PRODUCT DESCRIPTION
The AD9929 is a highly integrated CCD signal processor for
digital still camera and digital video camera applications. It
includes a complete analog front end with A/D conversion,
combined with a full-function, programmable timing generator.
The AD9929 also includes horizontal and vertical clock drivers,
which allow direct connection to the CCD image sensor.
The AD9929 is specified at pixel rates of up to 36 MHz. The
analog front end includes black level clamping, a CDS, a VGA,
and a 12-bit A/D converter. The timing generator provides all
the necessary CCD clocks: RG-clock, H-clocks, V-clocks, sensor
gate pulses, a substrate clock, and a substrate bias pulse. Oper-
ation is programmed using a 3-wire serial interface.
The AD9929 is packaged in a 64-lead CSPBGA. It is specified
over an operating temperature range of
25°C to +85°C.

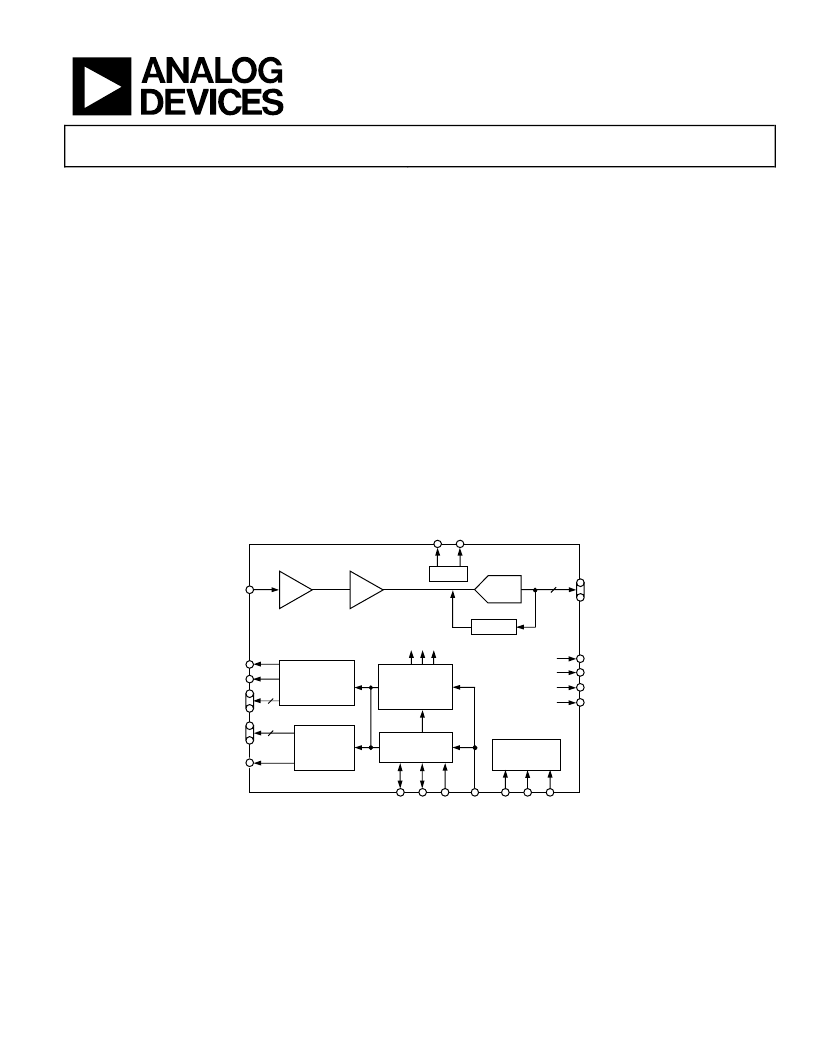

FUNCTIONAL BLOCK DIAGRAM
AD9929
CDS
VGA
CLAMP
12
DCLK1
FD/DCLK2
MSHUT
STROBE
CLI
DOUT
VREF
6dB TO 40dB
VERTICAL
DRIVERS
2
4
RG
H1, H2
V1, V2,
V3, V4
REFT REFB
PRECISION
TIMING
GENERATOR
SYNC
GENERATOR
INTERNAL CLOCKS
SUBCK
HD
VD
SYNC
INTERNAL
REGISTERS
SL SCKS
DI
VSUB
CCDIN
0
HORIZONTAL
DRIVERS
ADC
Figure 1.
