AD9923A
Generating HBLK Line Alternation
The AD9923A can alternate different HBLK toggle positions on
odd and even lines. This feature can be used in conjunction with
V-pattern odd/even alternation, or on its own. When 1 is written
to the HBLKALT register, HBLKTOGE1 and HBLKTOGE2 are
used on odd lines, and HBLKTOGE3 to HBLKTOGE6 are used
on even lines. Writing 2 to the HBLKALT register gives the oppo-
site result: HBLKTOGE1 and HBLKTOGE2 are used on even
lines, and HBLKTOGE3 to HBLKTOGE6 are used on odd lines.
When 3 is written to the HBLKALT register, all six even toggle
positions, HBLKTOGE1 to HBLKTOGE6, are used on even
Rev. 0 | Page 22 of 88
lines. There are also six additional toggle positions, HBLKTOGO1
to HBLKTOGE6, for odd lines. These registers are normally
used for VPAT Group A, VPAT Group B, and freeze/resume
functions, but when HBLKALT = 3, these registers become the
odd line toggle positions for HBLK.
Another HBLK feature is enabled by writing 4, 5, 6, or 7 to
HBLKALT. In these modes, the HBLK pattern is generated using
a different set of registers—HBLKSTART, HBLKEND, HBLKLEN,
and HBLKREP—along with four toggle positions. This allows
for multiple repeats of the HBLK signal, as shown in Figure 32.

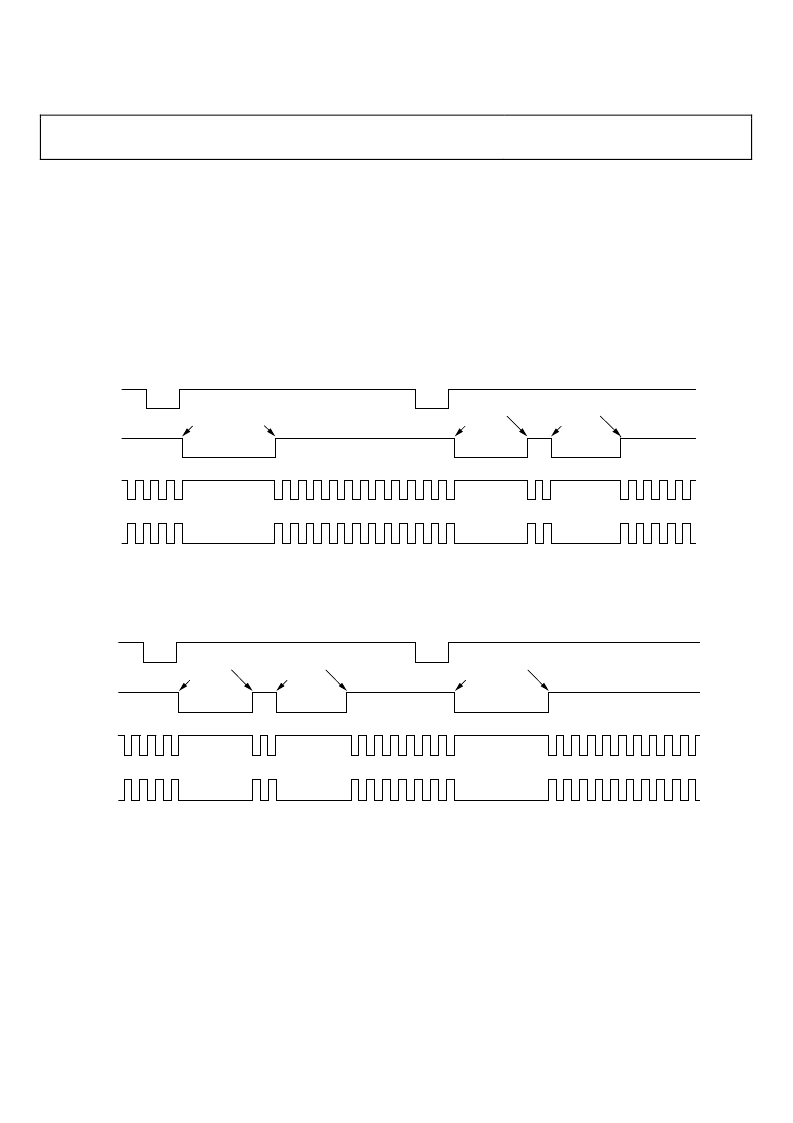

HBLK
ALTERNATING H-BLANK PATTERN USING HBLKALT = 1 MODE
HL/H1/H3
H2/H4
HBLKTOGE1
HBLKTOGE2
HD
HBLKTOGE3
HBLKTOGE4
HBLKTOGE5
HBLKTOGE6
ODD LINE
EVEN LINE
0
Figure 29. HBLK Odd/Even Alternation Using HBLKALT = 1
HBLK
ALTERNATING H-BLANK PATTERN USING HBLKALT = 2 MODE
HBLKTOGE3
HBLKTOGE5
HBLKTOGE4
HBLKTOGE6
HL/H1/H3
H2/H4
HD
ODD LINE
EVEN LINE
HBLKTOGE1
HBLKTOGE2
0
Figure 30. HBLK Odd/Even Alternation Using HBLKALT = 2
