MOTOROLA
60
MC68HC912B32
MC68HC912B32TS/D
Always reads $00.
Writing $55 to this address is the first step of the COP watchdog sequence.
Writing $AA to this address is the second step of the COP watchdog sequence. Other instructions may
be executed between these writes but both must be completed in the correct order prior to time-out to
avoid a watchdog reset. Writing anything other than $55 or $AA causes a COP reset to occur.
10.6 Clock Divider Chains
Figure 11
,
Figure 12
,
Figure 13
, and
Figure 14
summarize the clock divider chains for the various pe-
ripherals on the MC68HC912B32.

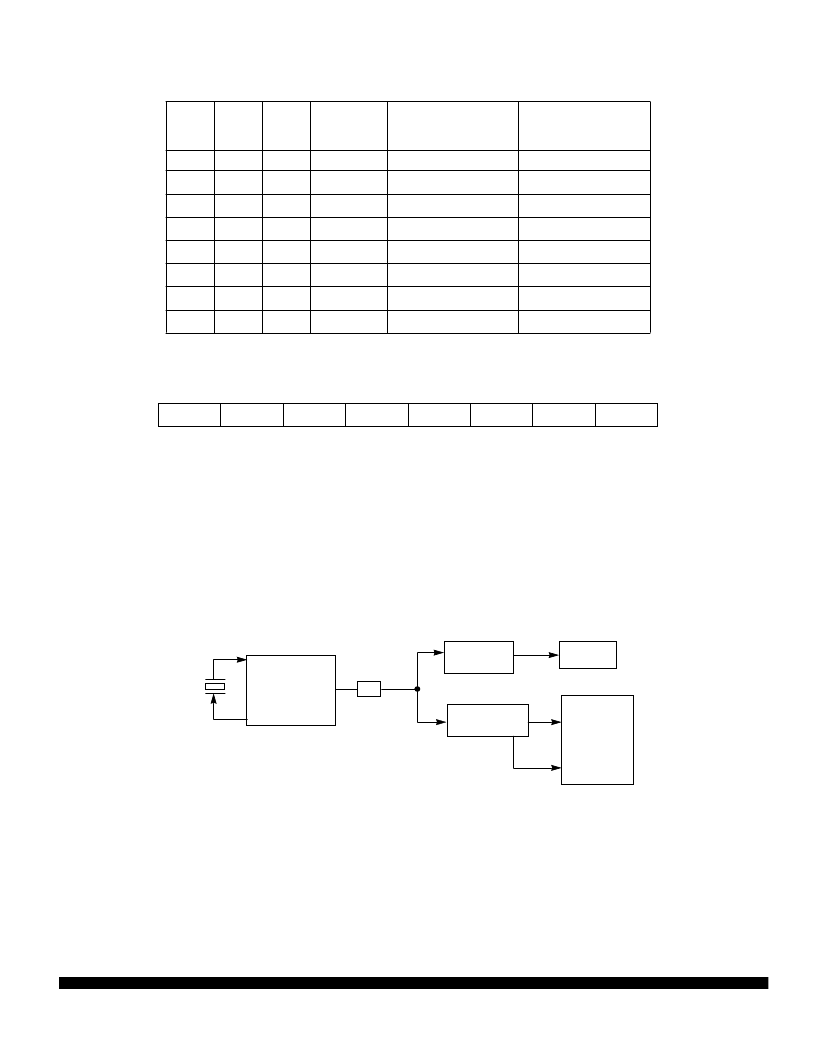

Figure 11 Clock Divider Chain
Table 21 COP Watchdog Rates (RTBYP = 0)
CR2
CR1
CR0
Divide E By:
At E = 4.0 MHz
Time-Out
–0 to +2.048 ms
OFF
2.048 ms
At E = 8.0 MHz
Time-Out
–0 to +1.024 ms
OFF
1.024 ms
0
0
0
0
0
1
OFF
2
13
0
1
0
2
15
8.1920 ms
4.096 ms
0
1
1
2
17
32.768 ms
16.384 ms
1
0
0
2
19
131.072 ms
65.536 ms
1
0
1
2
21
524.288 ms
262.144 ms
1
1
0
2
22
1.048 s
524.288 ms
1
1
1
2
23
2.097 s
1.048576 s
COPRST
— Arm/Reset COP Timer Register
$0017
Bit 7
6
5
4
3
2
1
Bit 0
Bit 7
6
5
4
3
2
1
Bit 0
RESET:
0
0
0
0
0
0
0
0
OSCILLATOR
AND
CLOCK
GENERATOR
EXTAL
XTAL
SYSCLK
T CLOCK
GENERATOR
TO CPU
E AND P CLOCK
GENERATOR
ECLK
PCLK
TO BDM,
BUSES, SPI,
ATD, SCI, TIM,
PULSE ACC,
RTI, COP,
PWM, BDLC
TCLKs
HC912B32 CLOCK DIV CHAIN
÷
