M82510
ASYNCHRONOUS SERIAL CONTROLLER
Military
Y
Asynchronous Operation
D 5- to 9-Bit Character Format
D Baud Rate DC to 288k
D Complete Error Detection
Y
Multiple Sampling Windows
Y
Two, Independent, Four-Byte Transmit
and Receive FIFOs
D Programmable Threshold
Y
Two, 16-bit Baud Rate Generators/
Timers
Y
System Clock Options
D On-Chip Crystal Oscillator
D External Clocks
Y
MCS
é
-51 9-Bit Protocol Support
Y
Control Character Recognition
Y
CHMOS III with Power Down Mode
Y
Interrupts Maskable at Two Levels
Y
Auto Echo and Loopback Modes
Y
Seven I/O Pins, Dedicated and General
Purpose
Y
Available in 28-Lead CERDIP and
28-Pad LCC Packages
Y
Military Temperature Range:
b
55
§
C to
a
125
§
C (T
C
)
The Intel CHMOS M82510 is designed to increase system efficiency in asynchronous environments such as
modems, serial portsDincluding expanding performance areas: MCS
é
-51 9-bit format and high speed async.
The functional support provided in the M82510 is unparalleledD2 baud rate generators/timers provide inde-
pendent data rates or protocol timeouts; a crystal oscillator and smart modem I/O simplify system logic. New
features, dual FIFOs and Control Character Recognition (CCR), dramatically reduce CPU interrupts and in-
crease software efficiency. The M82510’s software versatility allows emulation of the INS 8250A/16450 for
IBM PC AT
*
compatibility or a high performance mode, configured by 35 control registers. All interrupts are
maskable at 2 levels. The multi-personality I/O pins are configurable as desired. A DPLL and multiple sampling
of serial data improve data reliability for high speed asynchronous communication. The compact 28-pin
M82510 is fabricated in CHMOS III technology and includes a software powerdown option.
*
IBM and PC AT are registered trademarks of IBM Corporation.
271072–1

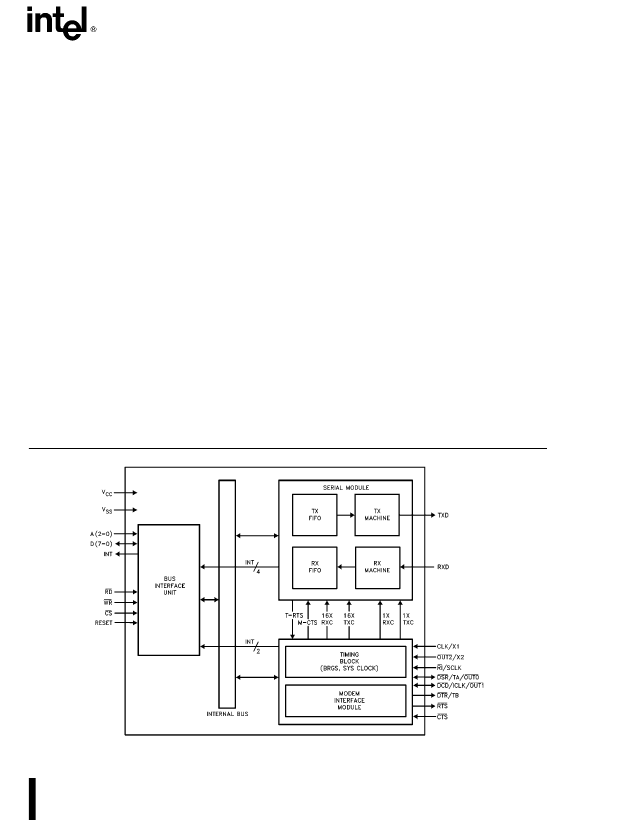

Figure 1. Block Diagram
